Queen’s Marque

Image via www.mlsarchitects.ca

Halifax, NS

CLIENT

Arrow Construction Products Limited

Architect

MacKay Lyons Sweetapple Architects and Fowler Bauld & Mitchell Architecture

Engineer

Campbell Comeau Engineering Ltd.

Contractor

Bird Construction, Marid Industries, Darim Masonry

FERO Products Used

FASTTM Thermal Bracket and FAST Thermal Lintel Bracket

FERO FAST™ Thermal Bracket Solution for Queen’s Marque Project in Halifax

The Armour Groups Queen’s Marque is a new urban neighbourhood on the historic waterfront, in the heart of downtown Halifax. Queen’s Marque features upscale residences, office space, curated food, beverage and retail space as well as 75,000 square feet of public space, significant art installations and Halifax’s first five-star hotel - Muir.

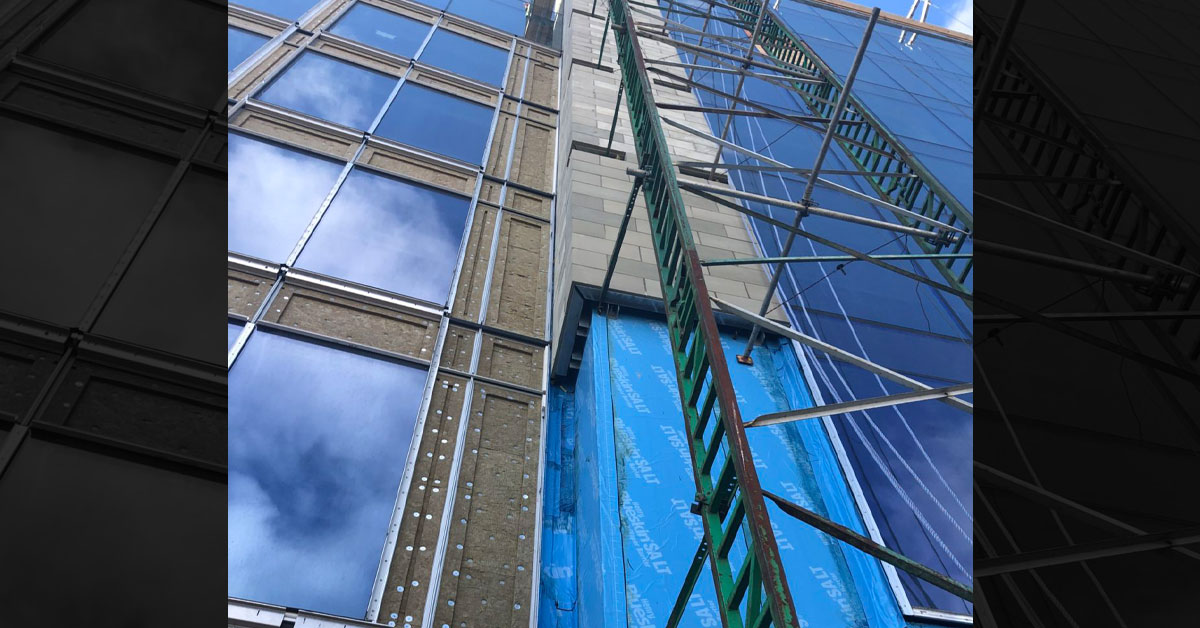

“On a complicated project like the Queen’s Marque on the Halifax waterfront, supporting the exterior masonry veneer offers some unique challenges. Using the FERO FAST™ Bracket Lintel Shelf Angle, it was possible to dramatically reduce thermal bridging through the wall assembly by minimizing penetrations and minimizing joints and junctions in the air and vapour barrier system. An added benefit was the fast and easy installation of the system by not requiring the shelf angle to be welded due to its modular, mechanically attached nature.” – David Landry, Territory Manager for Arrow Construction Products Limited

https://www.arrowco.ca/queens-marque-fero-fast-bracket-system/

Back to Project Profiles

Overview

Greenpoint Landing is a 22-acre master-planned development site located on the Brooklyn waterfront with a view of the Manhattan skyline, bringing a mix of ten residential towers and low-rise buildings, a new public school, and four acres of parkland. The buildings are located on reclaimed industrial use lands, and the brick veneer utilized in the building design provides continuity with the historical neighborhood.

Challenges

For the brick on the Greenpoint Landing F1 tower, the design team was targeting an energy efficient “thermally broken” shelf angle system, and had originally specified a Halfen cast in anchor with knife plate system (Figure 1 and 2). Spacing of the angle knife plate system was specified at 18” on centre for 4,326 linear feet of relieving angle, requiring approximately 2,884 units.

Solutions

In an effort to reduce costs, the contractor suggested a FERO FAST bracket solution (Figure 3) for offsetting the shelf angle.

As FERO became involved at a later stage in this project, the FAST bracket solution needed to accommodate existing wall cavity specifications from the architect, Handel and DiSimone.

FERO was able to accommodate these using custom FAST brackets with a depth of 3-3/16”, slot modified for ¾” bolts and supporting a 4x4x5/16” angle. This project highlights the cost saving proposition of FERO Fast Brackets, as the switch to FAST saved on both material (eliminating more than 1,000 units of the original spec, using only 1,800 FAST Brackets) and labor costs, as the FAST brackets could be quickly installed by a single trade onsite.

Result

FERO’s technical team is available to support designers and contractors in value engineering their projects to reduce costs. On this project, the structural support offered by FAST Brackets allowed for increased spacing and reduced material costs. Additional savings could have been achieved if the anchor channels were not already installed, as the horizontal and vertical adjustability included with FERO Fast Brackets makes such channels redundant. Our team will work with your project specs to ensure costs are minimized through use of the most efficient spacing, anchorage and shelf angle size.

FIG 1
