1841 Broadway

Images via New York Yimby

Manhattan, NY

Architect

SLCE Architects & INC Architecture & Design

Engineer

DeSimone Consulting Engineers

Contractor

Vema Group

FERO Products Used

FAST Thermal Bracket^™ Offset Shelf Angle Support and FAST-FLEX™

FAST Thermal Bracket™ Offset Shelf Angle Support Solution for 1841 Broadway

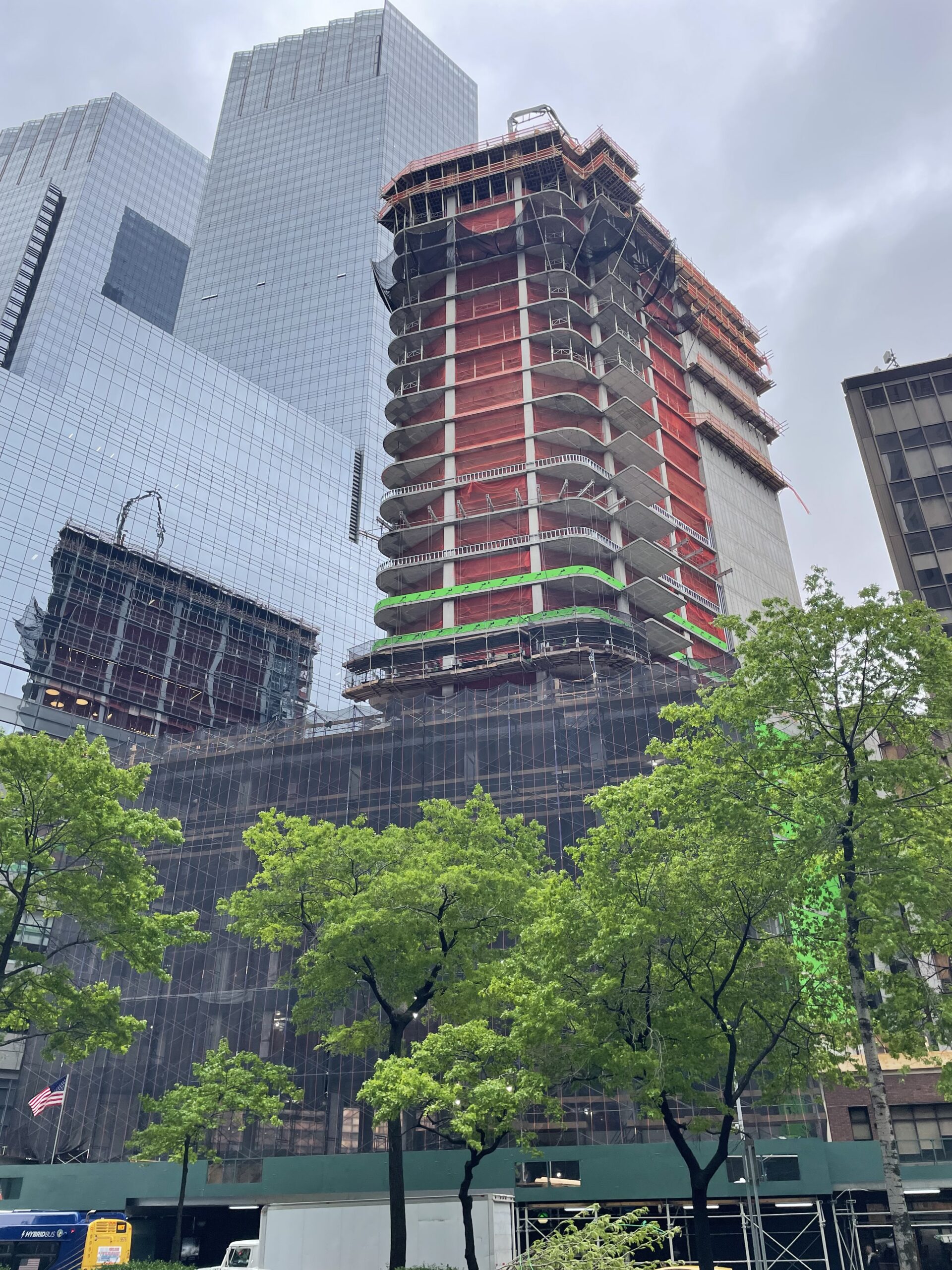

1841 Broadway is a 25-story, 281-foot-tall residential building on Manhattan’s Upper West Side. Designed by INC Architecture & Design and developed by Global Holdings Management Group, the building will provide 173 affordable housing units and 11,741 square feet of retail space on the first two levels.

1841 Broadway’s façade consists of a mix of glass interspersed with vertical pleated panels and black brick bands that wrap around each level. FAST Thermal Brackets™ are being used to provide a high-performing, thermally broken shelf angle system and to support this curvaceous façade.

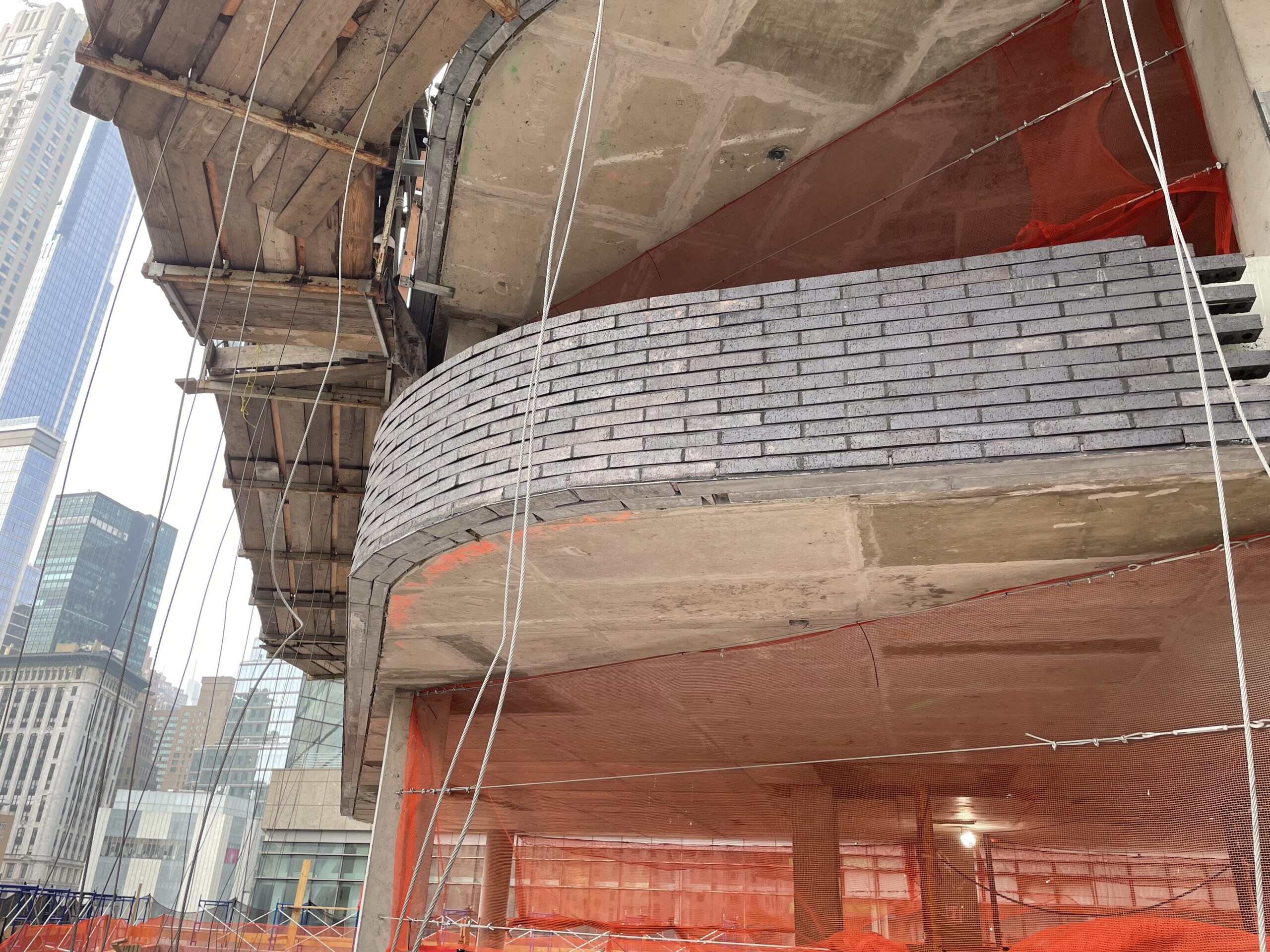

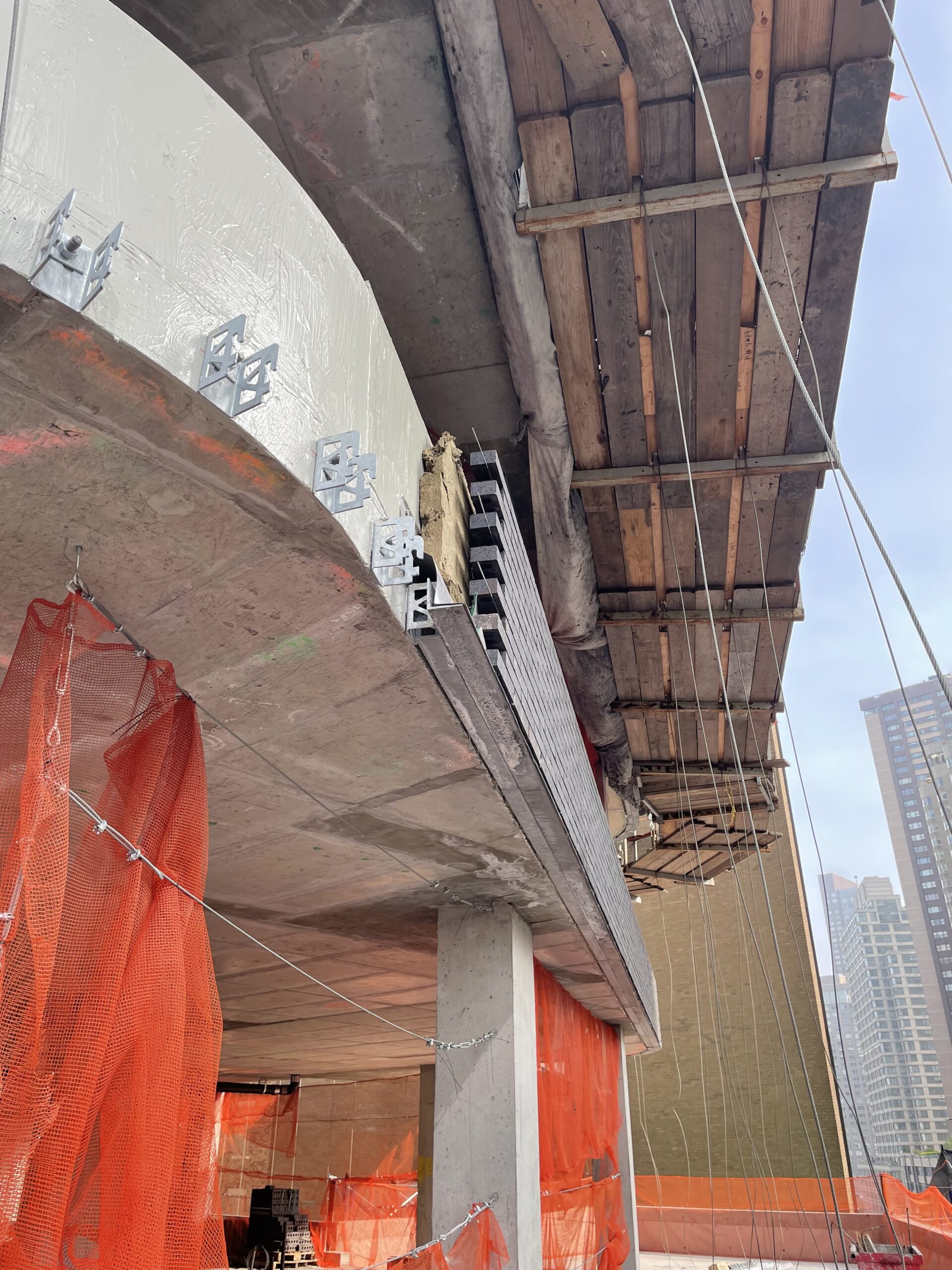

For various piers throughout the building, some with heights exceeding 33”, custom FAST Thermal Brackets were designed and manufactured to support the tall wall to window height of the façade. Our FAST-FLEX™ system was also integrated to accommodate the rounded corners of the structure. FERO’s custom products not only supported this building’s unique design but were much more affordable than using conventional shelf angle and rolled bent plate designs.

Back to Project Profiles

Overview

Greenpoint Landing is a 22-acre master-planned development site located on the Brooklyn waterfront with a view of the Manhattan skyline, bringing a mix of ten residential towers and low-rise buildings, a new public school, and four acres of parkland. The buildings are located on reclaimed industrial use lands, and the brick veneer utilized in the building design provides continuity with the historical neighborhood.

Challenges

For the brick on the Greenpoint Landing F1 tower, the design team was targeting an energy efficient “thermally broken” shelf angle system, and had originally specified a Halfen cast in anchor with knife plate system (Figure 1 and 2). Spacing of the angle knife plate system was specified at 18” on centre for 4,326 linear feet of relieving angle, requiring approximately 2,884 units.

Solutions

In an effort to reduce costs, the contractor suggested a FERO FAST bracket solution (Figure 3) for offsetting the shelf angle.

As FERO became involved at a later stage in this project, the FAST bracket solution needed to accommodate existing wall cavity specifications from the architect, Handel and DiSimone.

FERO was able to accommodate these using custom FAST brackets with a depth of 3-3/16”, slot modified for ¾” bolts and supporting a 4x4x5/16” angle. This project highlights the cost saving proposition of FERO Fast Brackets, as the switch to FAST saved on both material (eliminating more than 1,000 units of the original spec, using only 1,800 FAST Brackets) and labor costs, as the FAST brackets could be quickly installed by a single trade onsite.

Result

FERO’s technical team is available to support designers and contractors in value engineering their projects to reduce costs. On this project, the structural support offered by FAST Brackets allowed for increased spacing and reduced material costs. Additional savings could have been achieved if the anchor channels were not already installed, as the horizontal and vertical adjustability included with FERO Fast Brackets makes such channels redundant. Our team will work with your project specs to ensure costs are minimized through use of the most efficient spacing, anchorage and shelf angle size.

FIG 1
